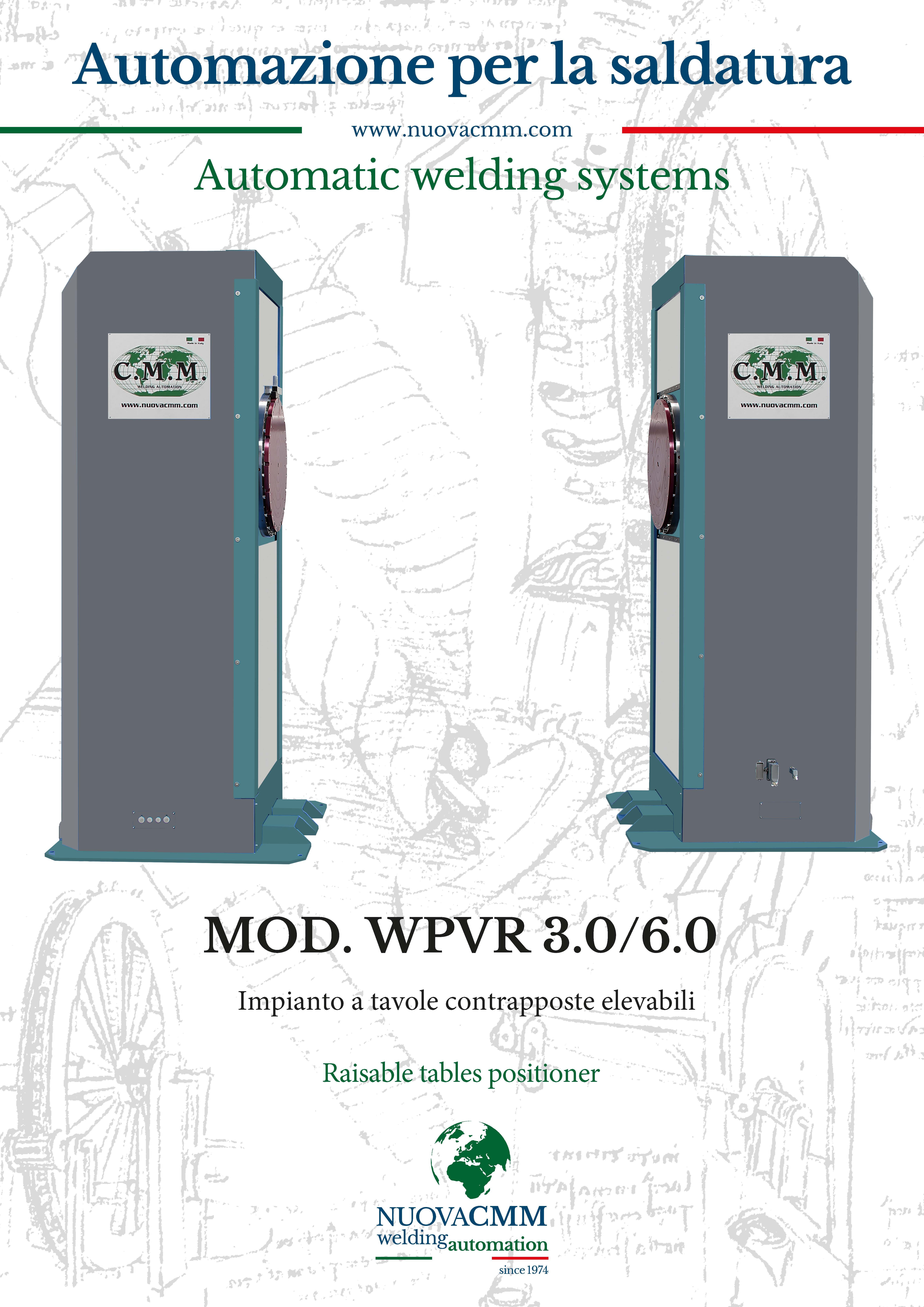

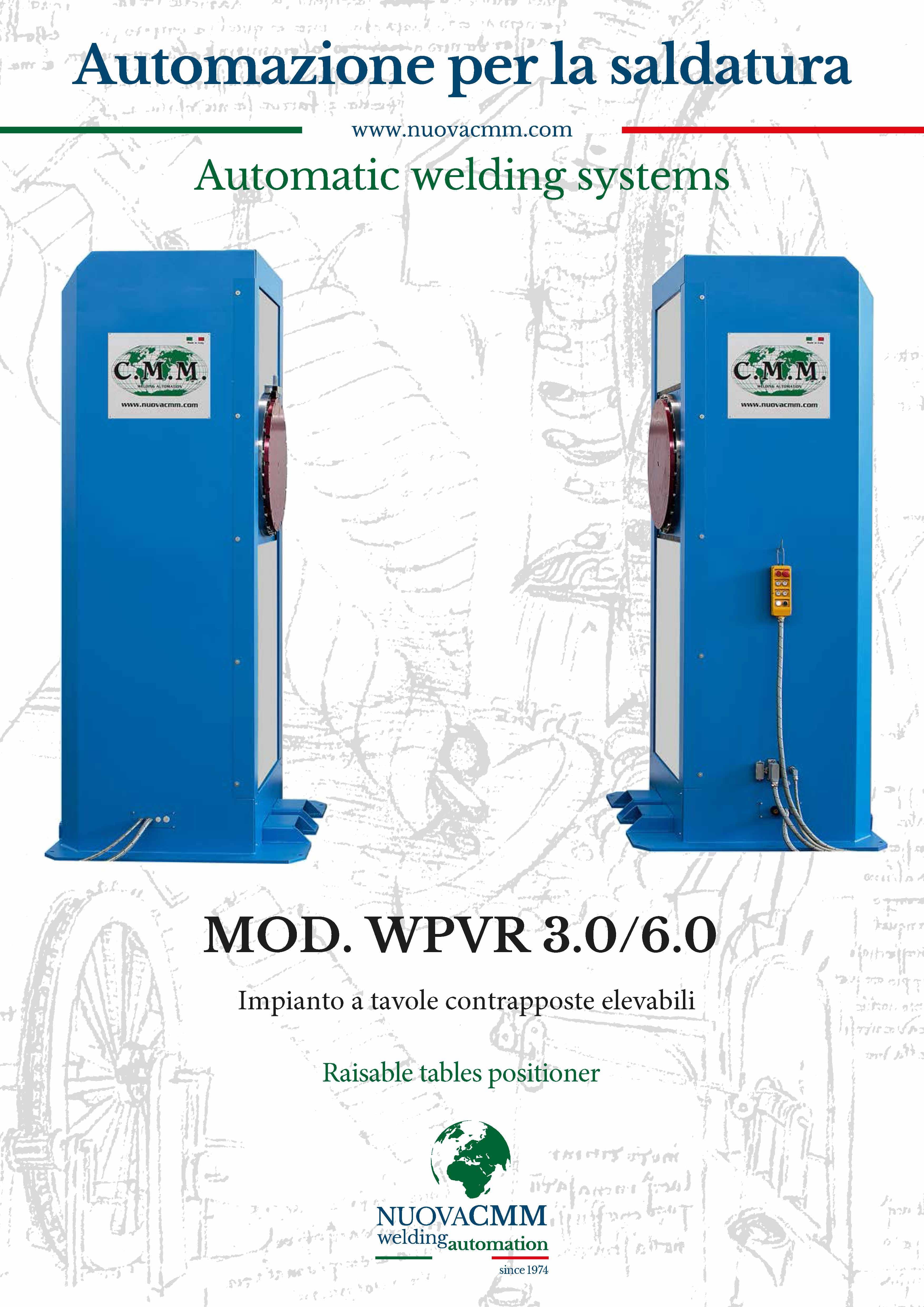

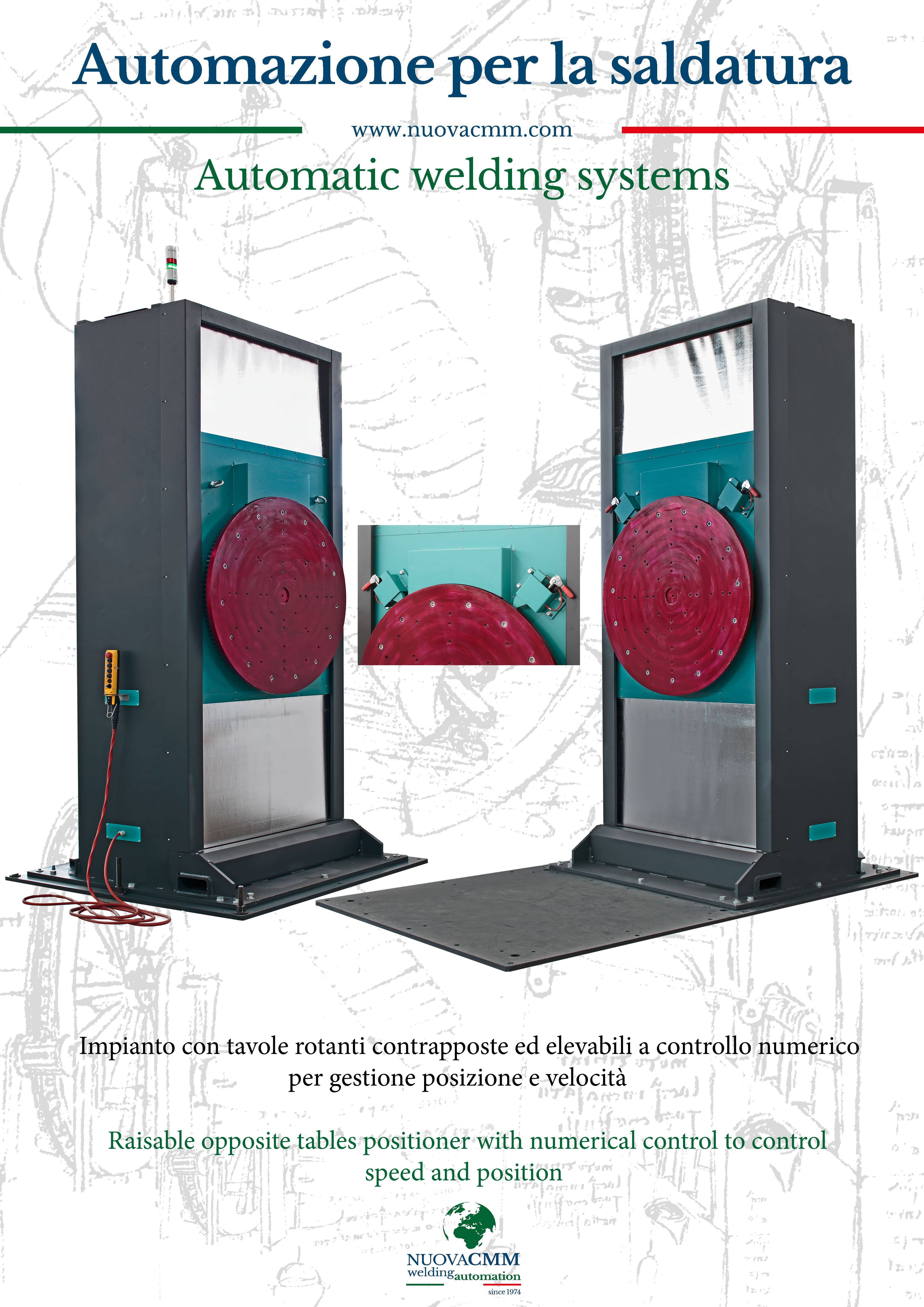

Two-axis two-post positioner with free-standing racks: the height adjustment of the faceplate is added to the rotation of the WPV model, which always ensures an optimal working position.
|
Model WPV WPVR |
Payload Motorized kg |
Payload Mot. + Idle, kg
|
Plate diameter, mm |
Torque momento, kgmt |
Tilting moment, kgmt |
Rotation speed, rpm |
Hmin Hmax, ΠΌΠΌ** |
|---|---|---|---|---|---|---|---|
| 0.5 / 1.0 | 500 | 1000 | 900 | 65 | 100 | 0 - 0,90 | 600 - 1200 |
| 1.5 / 3.0 | 1500 | 3000 | 1000 | 180 | 450 | 0 - 0,70 | 600 - 1200 |
| 2.5 / 5.0 | 2500 | 5000 | 1200 | 300 | 750 | 0 - 0,60 | 800 - 1800 |
| 5.0 / 10.0 | 5000 | 10000 | 1200 | 500 | 1200 | 0 - 0,50 | 800 - 1800 |
| 8.0 / 16.0 | 8000 | 16000 | 1500 | 900 | 4000 | 0 - 0,40 | 900 - 2000 |
| 12.5 / 25.0 | 12500 | 25000 | 1500 | 1600 | 7000 | 0 - 0,35 | 900 - 2000 |
